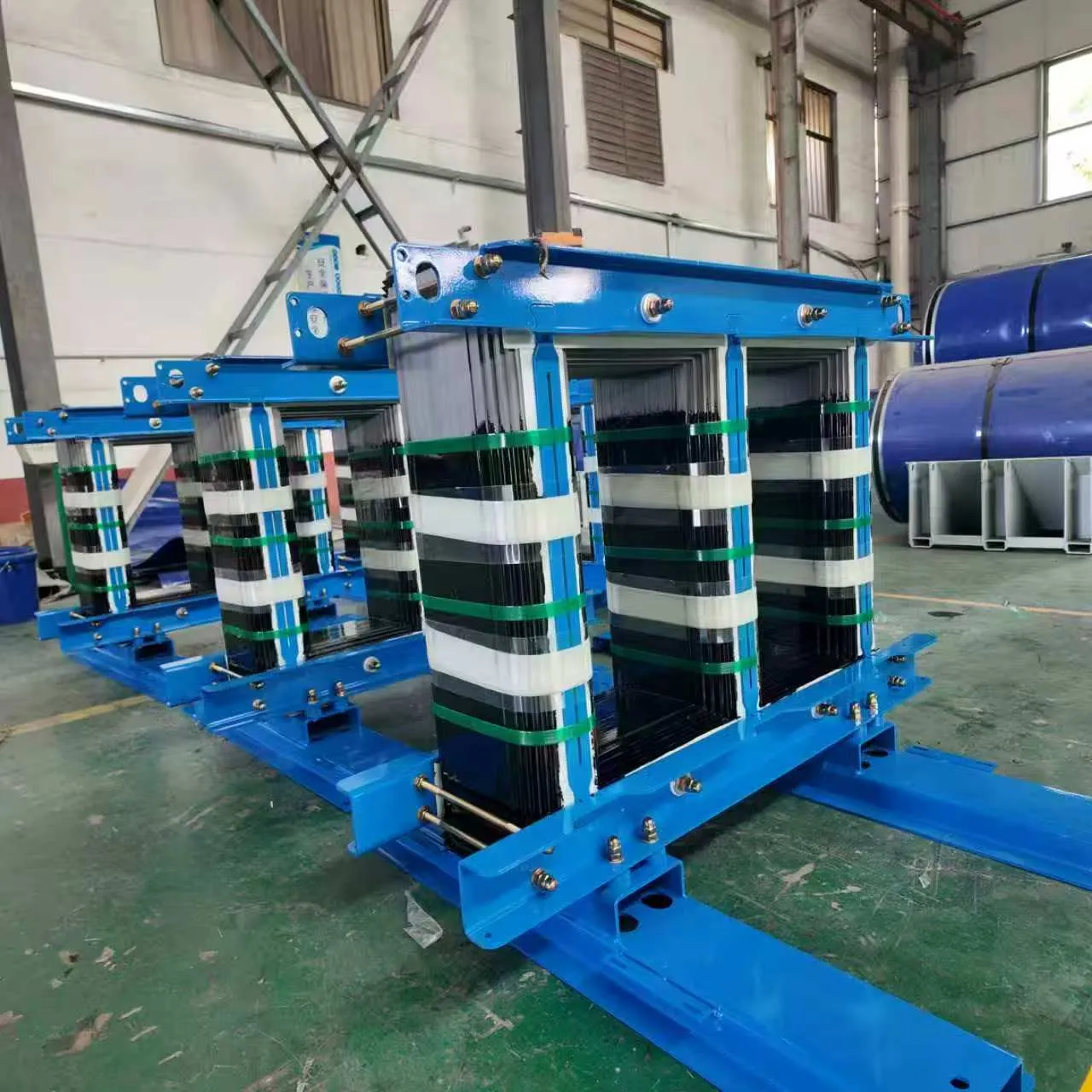

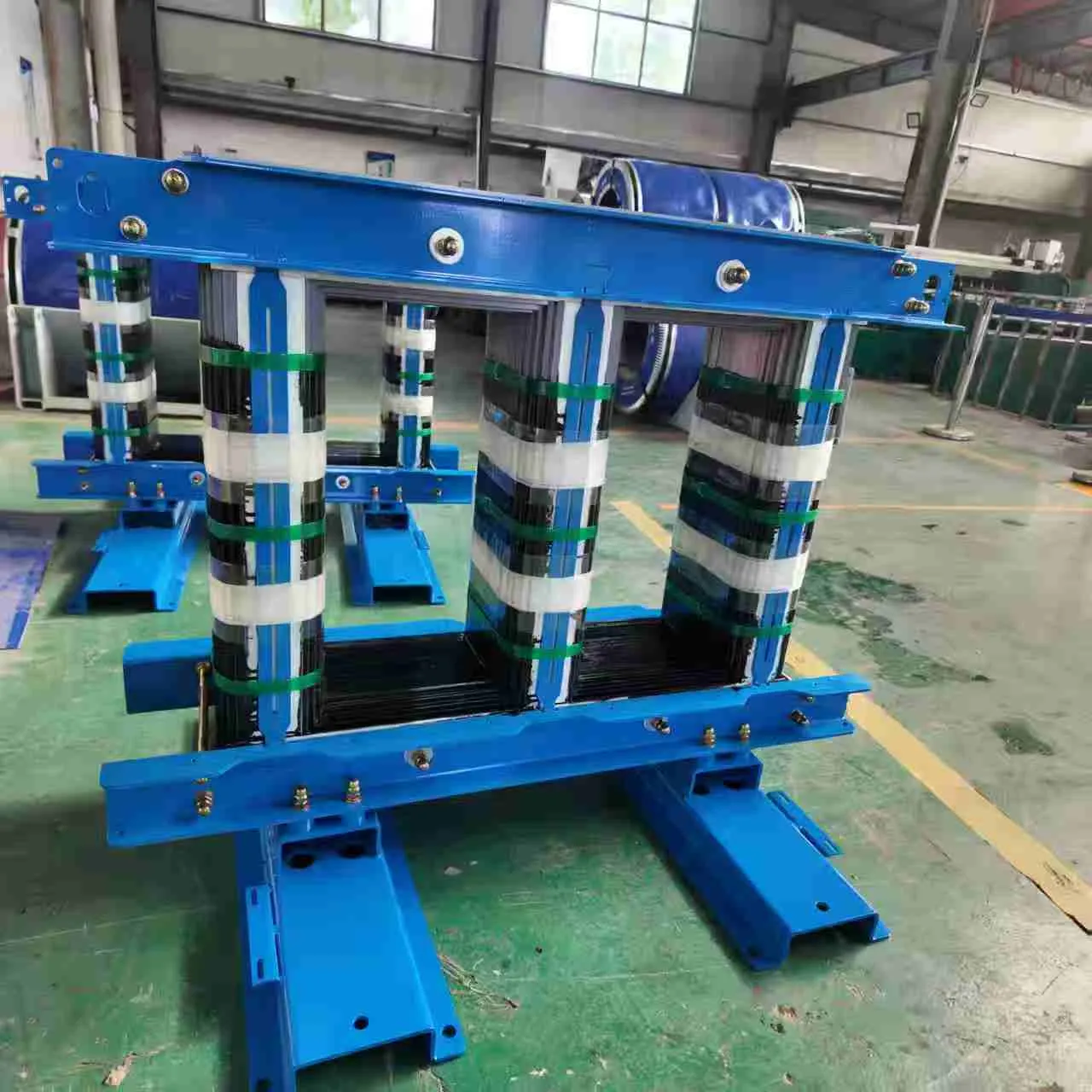

Laminated Silicon Steel Transformer Iron Core

Manufacturer's Production Capacity and Strength

• 01 Production Scale

  It has a modern production base of over 20,000 square meters, with an annual production capacity of more than 100,000 units/sets, enabling bulk delivery of various specifications.

• 02 Quality Control

  We adopt strict raw material screening and full-process inspection standards for transformer cores. Every piece of silicon steel used in our cores undergoes rigorous testing on magnetic performance, thickness and flatness.

• 03 Supply Capacity

  Adequate stock and mature production lines ensure fast mass delivery. We can steadily supply bulk orders and arrange timely shipment worldwide. Flexible order arrangement meets different delivery cycle demands.

Customization Support

• 01 Specification Customization

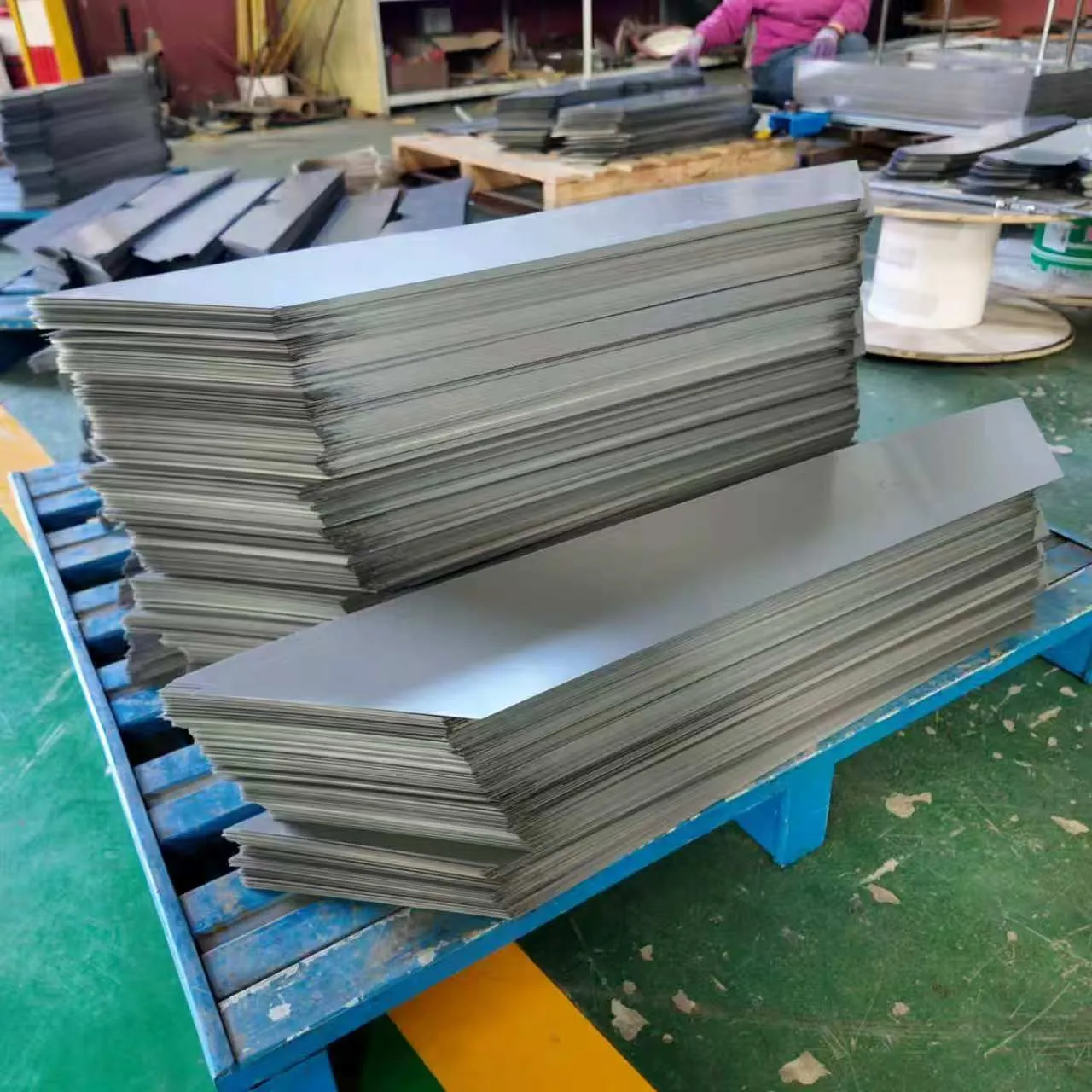

  We support customized processing of silicon steel sheets for transformer cores, including punching, cutting, laminating, hole pattern machining and tailored production. Our products cover various grades and thicknesses from 0.23mm to 0.50mm, adapting to different power transformer and motor core requirements.

• 02 Structure Customization

  We can customize the structure and specifications of transformer cores based on your design and application requirements. This includes tailored shapes, dimensions, stacking factors, and insulation coatings, to meet the diverse core assembly needs of oil-immersed, dry-type, and distribution transformers.We also offer personalized processing for hole patterns, notches, and cutting tolerances, ensuring the core fits perfectly with your transformer’s coil and tank structure, delivering optimal magnetic performance and assembly efficiency.

• 03 Accessory Customization

  We provide fully customized silicon steel transformer core solutions tailored to your transformer design.
  From material grade selection to core shape, stacking factor, and lamination configuration, we adapt every detail to your specifications.
  We handle the entire process, from precision cutting and punching to stacking and final assembly, ensuring the transformer core meets exact performance and fitting requirements.

• 04 Special Environment Adaptation

  Suitable for high altitude, extreme temperature, coastal salt spray, chemical corrosion, humid dusty and seismic working scenes.
  We optimize silicon steel sheet material and surface treatment to resist dampness, corrosion and temperature change.
  Stable magnetic performance guaranteed for long-term use in various harsh environments.

• 05 OEM/ODM Services

  We provide fully customized silicon steel transformer core solutions tailored to your transformer design.
  From material grade selection to core shape, stacking factor, and lamination configuration, we adapt every detail to your specifications.
  We handle the entire process, from precision cutting and punching to stacking and final assembly, ensuring the transformer core meets exact performance and fitting requirements.

Inspection and Testing

• 01 Raw Material Inspection

  We carry out strict incoming inspection for all silicon steel sheets used for transformer cores.
  All raw materials undergo comprehensive inspection and professional performance tests, fully complying with international industry standards.
  We carefully select silicon steel sheets of different grades and thicknesses for core production.
  Unqualified materials are rejected at the very beginning to control product quality strictly.
  We also verify material consistency batch by batch to avoid performance differences.
  This ensures stable magnetic performance and reliable quality of finished transformer cores.
  It also helps minimize operational faults and greatly prolong the service life of transformers.
  Our rigorous material control lays a solid foundation for long-term stable operation of equipment.

• 02 In-Process Inspection

  We implement rigorous in-process inspection during the production of silicon steel transformer cores.
  We strictly check cutting size, punching precision and surface finish in real time throughout all procedures.
  We standardize every processing step to effectively avoid dimensional deviation and surface damage.
  We track production status at every station to spot hidden problems timely.
  We optimize operational techniques to maintain uniform workmanship across all products.
  This keeps overall product consistency stable and ensures every finished transformer core reaches quality standards.
  We continuously monitor key processing parameters all the way to keep magnetic performance intact.
  We conduct random sampling tests to double verify the overall product quality.
  Our products fully meet diverse matching demands of different power transformers and electrical equipment.

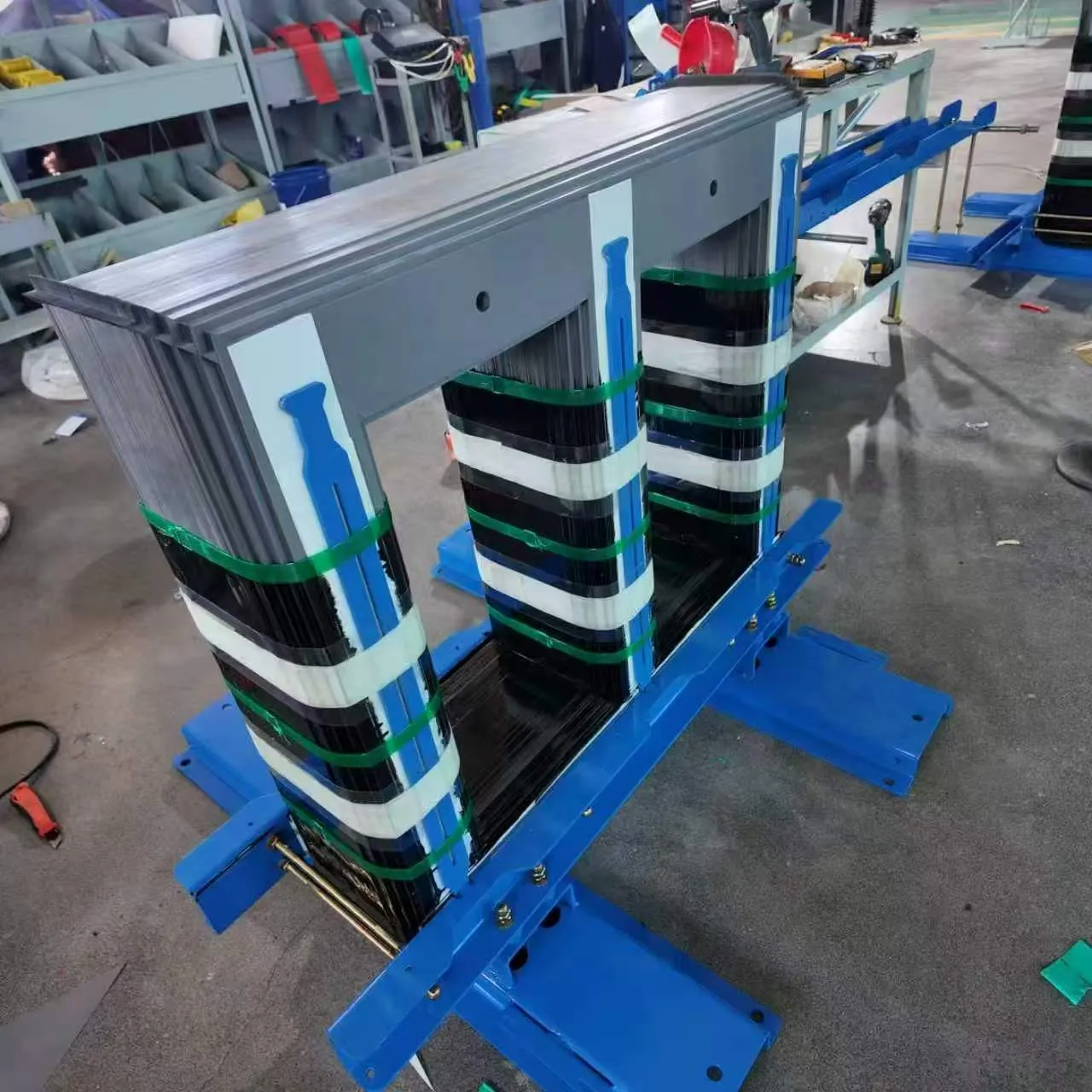

• 03 Factory Inspection

  Comprehensive finished product inspection is carried out for transformer cores before delivery.
  We accurately test magnetic properties, thickness tolerance and surface insulation performance of each core.
  We also check overall assembly tightness and structural stability one by one.
  Professional testing tools are adopted to ensure all detection data is true and accurate.
  Strictly screen out defective goods to ensure all items meet national and industry standards.
  Conduct random sampling recheck in batches to maintain unified stable product quality.
  We classify and label finished cores clearly for convenient storage and distribution.
  All qualified products are properly packaged to prevent damage during transportation.
  Complete detailed quality records to support reliable delivery and after-sales guarantee.

Product Cases

Dry-type Transformer

Transformer core is the core component of dry-type transformers. It works with windings to transmit magnetic flux, supporting voltage conversion and stable operation. It also helps reduce energy loss and operating noise.

Power Distribution Transformer

The core is the magnetic heart of a power transformer. It forms a closed magnetic path to transfer alternating flux between windings, enabling voltage transformation.

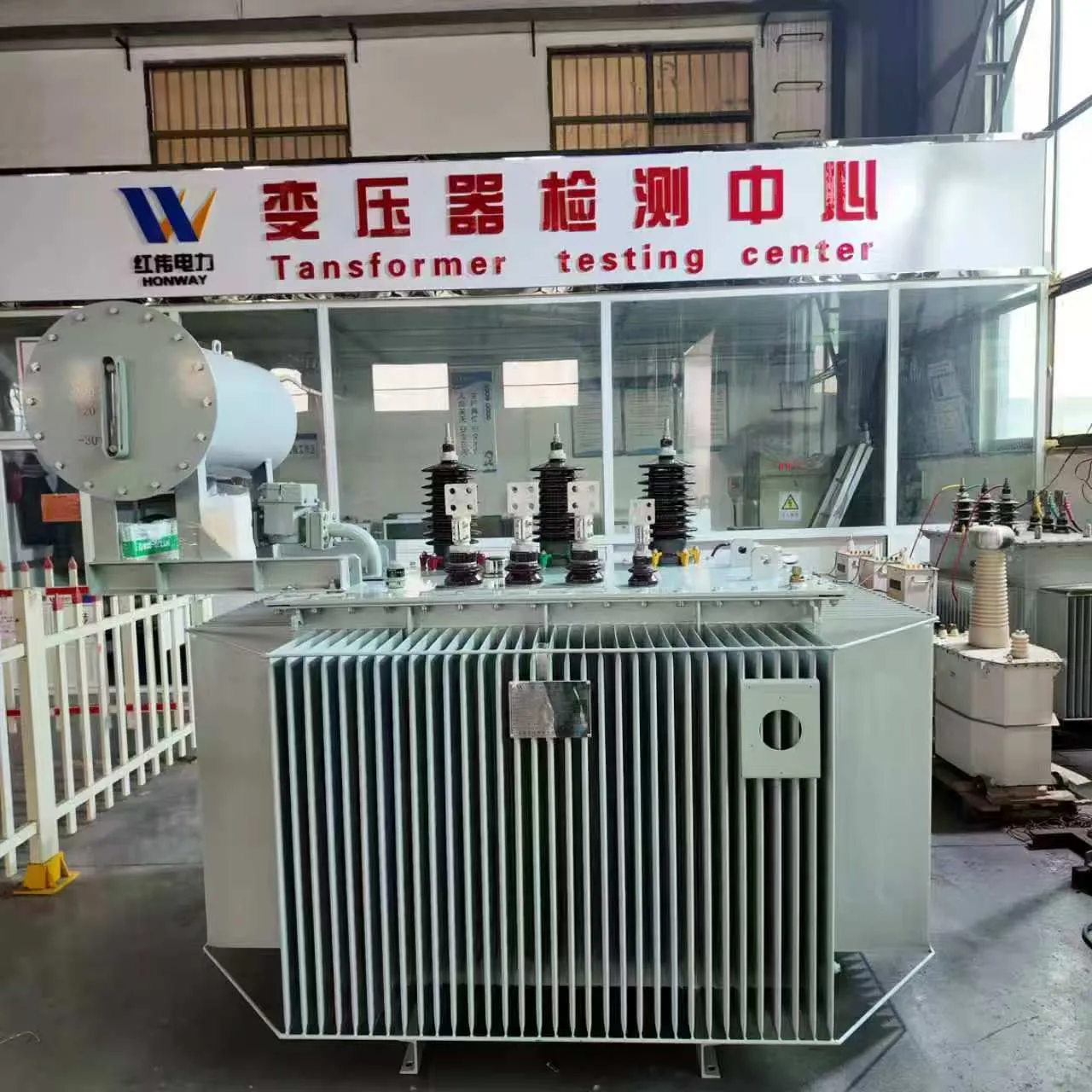

Oil-immersed Transformer

In oil-immersed transformers, the core is submerged in insulating oil. The oil cools the core and provides insulation, supporting stable, high-power operation with low noise.

Box-type Substation

The core is an indispensable key part of box-type substations. It ensures stable power distribution and adapts well to harsh outdoor conditions.

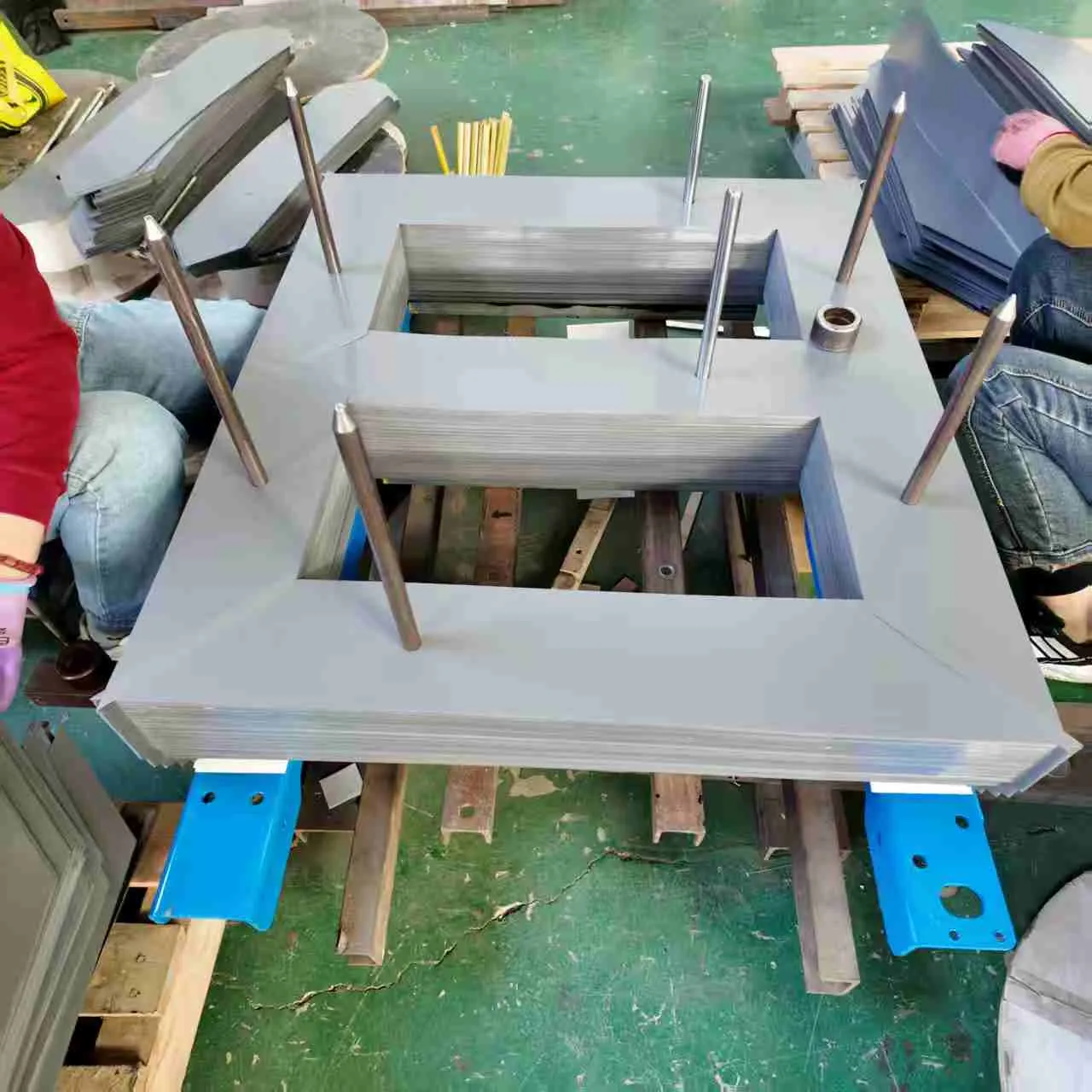

Transformer Core Assembly

The core relies on meticulous assembly to maintain fine magnetic performance. Proper fitting keeps the core working efficiently for long term.
