European Type Transformer Substation Supplier

Honway supplies European-type transformer substations for medium- to low-voltage power distribution projects. A European-style unit is not simply a transformer inside an enclosure: it combines the MV switching and protection section, transformer section, and LV distribution section into one factory-engineered compact substation.

Our current European-style product listings cover configurations from 100–5000 kVA and 6–35 kV on the MV side with 0.4 kV LV configurations. Specific voltage ratios, capacity, switching arrangement, enclosure design and project interfaces are confirmed according to your electrical specification.

For a project quotation, the transformer rating alone is not enough. The MV network, protection scheme, transformer type, LV feeder arrangement, installation environment and required standards must be considered together.



Current European-Style Transformer Substation Range

Configuration	Rated Voltage	Typical Use
800 kVA European-style transformer substation	10kV / 0.4kV	Medium-capacity distribution projects
1,250 kVA compact substation	11kV / 0.4kV	Commercial and distribution networks on an 11kV supply
1,600 kVA European box-type transformer	20kV / 0.4kV	Projects requiring a 20kV MV interface
2,000 kVA compact substation	33kV / 0.4kV	Higher-voltage industrial and distribution applications
500–3,150 kVA European box transformer	10–35kV / 0.4kV	Projects needing a wider capacity and MV voltage range

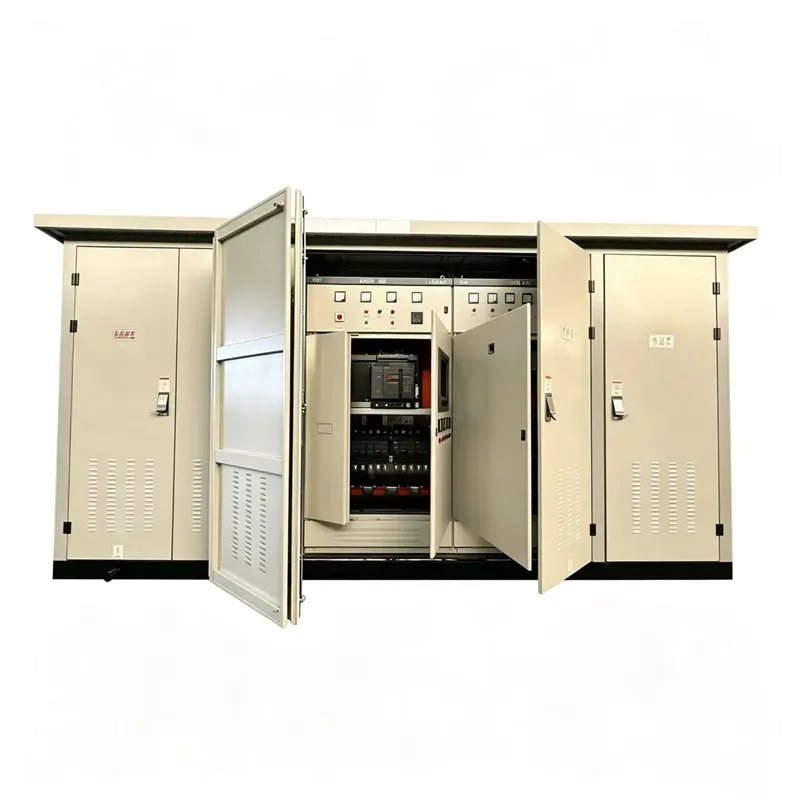

100–5,000 kVA European substation	6–35kV / 0.4kV	Broader project-specific compact substation requirements

Final footprint and weight depend on the approved MV switchgear type, transformer type, and LV feeder count — two substations at the same kVA rating can need different enclosure sizes once those are factored in.



Standards and Certification — What's Actually Behind "IEC Compliant"

A European-style transformer substation sits under more than one standard, because it's more than one piece of equipment in one box:

• IEC 62271-202 covers the prefabricated substation itself — enclosure integrity, internal arc classification, and the assembly as a whole.
• IEC 62271-200 (or IEC 62271-100/-105 depending on switching device) covers the MV switchgear compartment specifically.
• The transformer inside follows standard IEC 60076 series requirements, whether oil-immersed or dry-type.

Honway's European-style substations are manufactured under ISO 9001 quality control, with CE documentation available per configuration — several units in our current range, including the 1,250kVA 11kV/0.4kV platform, are built and documented as IEC- and CE-oriented units. Confirm the exact certificate and test-report scope you need (routine test, type test, or third-party witness test) at inquiry stage — for tender and EPC orders this affects both design and lead time, so it needs to be locked down before production, not after.



Select the Substation by System Configuration, Not kVA Alone

A reliable specification starts with the complete distribution system, not just an 800kVA, 1,250kVA, or 2,000kVA transformer rating.

Rated capacity and voltage: confirm capacity from the project load profile and planned expansion, then match MV input and LV output to the utility network. Key inputs: rated capacity, MV system voltage, LV distribution voltage, frequency, voltage ratio and tap range, and vector group when the project specifies one — most projects default to Dyn11 unless the utility or downstream equipment requires otherwise. Don't assume two substations at the same kVA are interchangeable without checking these.

MV switching and protection: the MV compartment connects the substation to the incoming network and provides switching, isolation, and protection. Depending on the grid arrangement and protection study, this typically means an RMU (ring main unit), a load-break switch and fuse combination, or circuit-breaker-based protection. The right choice depends on incoming network type, fault level, radial or ring arrangement, and required protection coordination — send the single-line diagram whenever you have one; it tells our engineers more than a capacity number ever could.

Oil-immersed or dry-type transformer: both are used inside European-style substations, and they solve different installation problems. Oil-immersed is the common default where compact thermal performance and outdoor duty are the priority — see our Three-Phase Oil-Immersed Transformer page for the oil-side specifications. Dry-type is preferred where oil-free operation or fire-safety specification rules out oil — see our Dry-Type Transformer page. The choice should be made with the full substation design, including ventilation and enclosure heat dissipation, not treated as a standalone material swap.

LV distribution, metering and compensation: the LV compartment has to match the downstream system, not just the transformer's secondary rating. Confirm LV main incomer rating, number and rating of outgoing feeders, circuit-breaker requirements, metering, CT requirements, reactive-power compensation if required, and any monitoring/communication needs. Two substations with identical transformer capacity can need very different LV cabinets once feeder count and load type differ.

Enclosure, environment and installation: the enclosure spec follows the installation site, not a default assumption. For outdoor or coastal sites, typical configurations run IP33 or IP34 for standard outdoor exposure, stepping up to IP54 for high-humidity or dust-heavy environments — tell us the site conditions and we'll recommend the rating rather than leaving it as an open question. Also confirm corrosion protection level, ambient temperature range, altitude, seismic conditions, and access requirements. For space-constrained or retrofit sites, provide maximum footprint, cable entry direction, foundation interface, and lifting/transport restrictions up front — these often change the layout more than the transformer rating does.



How Configuration Changes by Application

• Urban or commercial distribution: prioritize footprint, noise, enclosure protection, and public-access safety — the substation is often installed close to buildings, roads, or pedestrian areas.
• Industrial facilities: prioritize load duty, fault level, transformer capacity, and LV feeder complexity — industrial loads often need higher fault withstand and more elaborate LV distribution than commercial projects.
• Infrastructure and utility projects: prioritize documented compliance, protection coordination, and installation interfaces — approval processes care as much about the paperwork as the electrical design.
• Outdoor or coastal sites: prioritize corrosion protection, IP rating, humidity resistance, and enclosure material — environmental exposure drives component selection directly.
• Space-constrained retrofit: prioritize overall dimensions, cable entry, and maintenance clearance — existing civil interfaces limit what layout is even possible.
• Renewable energy and EV charging distribution: prioritize load profile, grid interface, metering, and monitoring — variable or concentrated loads change protection requirements. See our article on Sizing Grid-Connected Photovoltaic Power Transformers for solar-specific sizing, and Smart Charging Station Power Transformer Solution Trends for EV charging load considerations.

Application alone doesn't determine the final model — the electrical network and site conditions remain the actual basis for configuration, application just tells you which parameters to prioritize first.



European-Style Transformer Substation vs. Pad-Mounted Transformer

Both are compact, factory-engineered distribution equipment, and both solve for "the transformer needs to fit somewhere it wasn't built for" — the difference is architecture, not quality.

A European-style transformer substation separates MV switchgear, transformer, and LV distribution into dedicated compartments within one prefabricated enclosure, commonly specified where IEC-based grid practices apply — most of Europe, Africa, the Middle East, and Asia-Pacific.

A pad-mounted transformer follows a different equipment architecture built around ANSI/IEEE utility practices, more common across North America — see our Pad-Mounted Transformer page for that architecture's dead-front/live-front and loop/radial feed specifics.

Neither is universally better; the choice follows the destination grid's standard practice, not personal preference. If your project is still deciding between the two, the fastest way to resolve it is confirming which utility standard the destination network runs on before choosing equipment architecture.



Custom European-Style Transformer Substation Engineering

Honway supports project-specific engineering rather than limiting selection to a fixed nameplate combination. Depending on the project and technical review, configuration can include rated capacity, MV/LV voltage ratio, tap range, connection arrangement, transformer structure (oil-immersed or dry-type), cooling configuration, enclosure configuration and color, connection method, and selected accessories.

If your project is based on an EPC specification, utility specification, or existing single-line diagram, send the documents during the technical review — the engineering configuration should be confirmed before dimensions and commercial quotation are finalized, not after.



Factory Inspection and Project Documentation

A European-style transformer substation should be evaluated as a complete electrical assembly, not just by its transformer nameplate. Honway's customization process includes factory inspection and test documentation before release, with third-party reinspection available where the project requires it.

For tender and EPC orders, specify the required document package before production begins — depending on the contract, this may include a technical datasheet, single-line diagram, general arrangement drawing, nameplate information, routine test report, required certificate or type-test documentation, packing and shipping documentation, and FAT or witness-test requirements. Applicable standards and certificate scope should be confirmed against the exact configuration and destination market, not assumed from the product family name alone.



FAQ

Q: Can I specify only the kVA rating when requesting a European-style transformer substation quotation?
A: No. Capacity is one input among several. MV/LV voltage, network arrangement, transformer type, MV protection, LV feeder configuration, environmental conditions, and applicable standards all shape the final design — see the checklist above for the full list.

Q: Can a European-style substation use either an oil-immersed or dry-type transformer?
A: Yes, both are common inside this equipment architecture. The choice depends on installation environment, fire and environmental requirements, and thermal design — see our Three-Phase Oil-Immersed Transformer and Dry-Type Transformer pages for the specifics of each, and confirm the choice during engineering review.

Q: What's the difference between a European-style substation and a pad-mounted transformer?
A: Both are compact, prefabricated distribution equipment, but they follow different architectures tied to different regional grid practices — European-style separates MV switchgear, transformer, and LV distribution into one IEC-based enclosure; pad-mounted follows ANSI/IEEE utility practice common in North America. See our Pad-Mounted Transformer page for that architecture in detail.

Q: What standards and certifications apply to Honway's European-style transformer substations?
A: IEC 62271-202 for the prefabricated substation assembly, IEC 62271-200 (or the applicable switching-device standard) for the MV compartment, and IEC 60076 for the transformer itself. Manufacturing runs under ISO 9001, with CE documentation available per configuration — confirm the exact certificate scope your project needs at inquiry stage.

Q: What information is most useful before requesting a custom quotation?
A: A single-line diagram is the best starting point. Also send transformer capacity, MV/LV voltage, frequency, protection requirements, LV feeder information, site conditions, applicable standards, and destination country.

Q: Are dimensions fixed for each transformer capacity?
A: Not necessarily. Overall dimensions change with MV switchgear type, transformer type, LV feeder quantity, enclosure arrangement, cable entry, and project access requirements — final dimensions follow the approved general arrangement (GA) drawing.

Q: What IP rating should I specify for an outdoor installation?
A: IP33 or IP34 covers most standard outdoor exposure; step up to IP54 for high-humidity, coastal, or dust-heavy sites. Tell us the site conditions and we'll recommend the rating rather than leaving it as a guess.
